Round Plastic Food Container Injection Mold

Round Plastic Food Container Injection Mold

Description

We are a leading manufacturer for food Container Moulds. Supplying plastic food can molds with various sizes, shapes and designs, dedicated food lunch box container moulds manufacturing. We are good at making thin wall boxes and container mould, thinwall lid mold, microwave container molds.

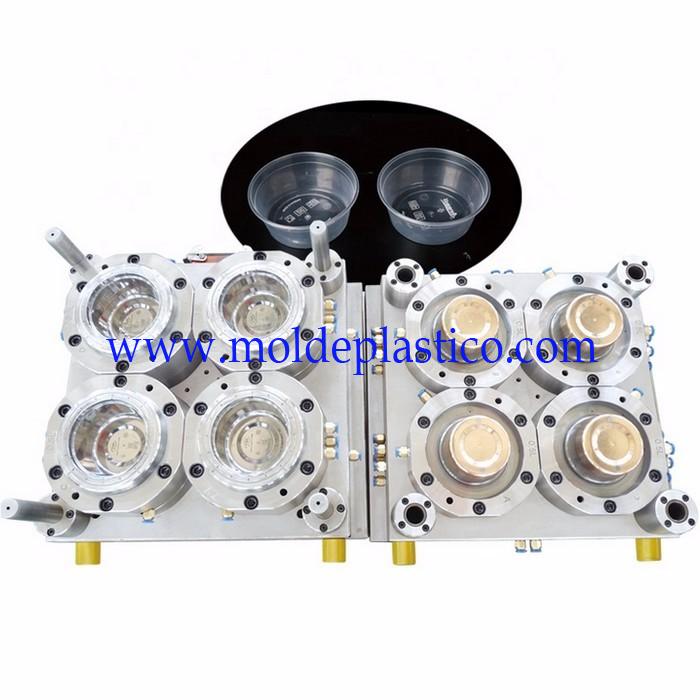

For food container molding, we design multi-cavity container in separate cavity molding inserts locking system, this can saving the tooling period time, also can avoid the tooling mistake risk for high precision mould process.

It have to use high speed milling machine, fast flow of the raw material inside cavity by valve gate system, effective cooling system for the mold temperature control and high speed moving of each step. We also offer IML molding system for food container molds.

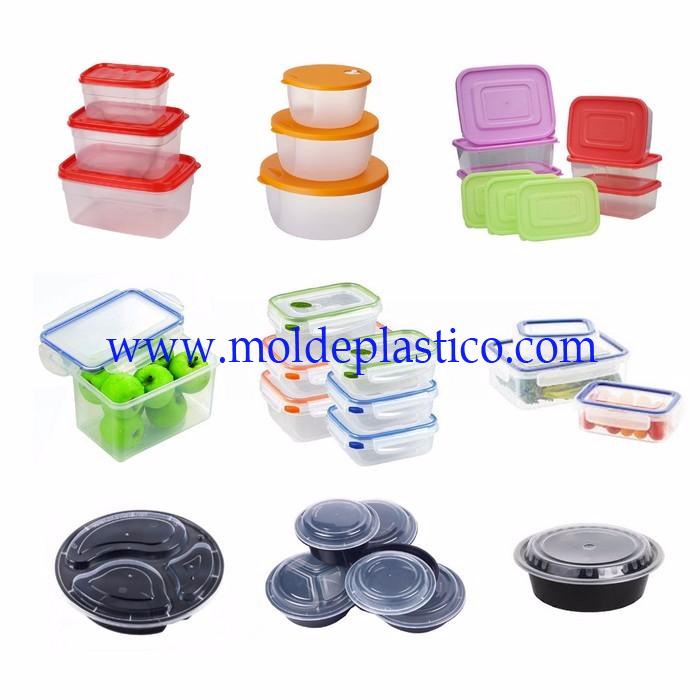

MOLDEPLASTICO supplies a complete set of multi-cavity transparent container molds with different sizes. The capacity includes 100ml, 200ml. 250ml. 500ml, 1000ml, large like 18 l, 25 l, 60 l, 110 l and so on. From 100ml up to 1500ml box mould, round box mould, thinwall IML molding box get high production capacity for profit.

There are two types of transparent containers:

1. Single-use food packaging, usually single-use products are ultra-thin containers with a wall thickness of 0.4-0.6 mm. We can produce 4 cavity 1 l ultra-thin container mold with a wall thickness of 0.4 mm. It can run 10s/shots with 400 tons injection molding machine.

2. Not disposable. Another type of plastic container has a wall thickness of about 0.8-1 mm. At present, we have a set of container molds that can produce seven different sizes and shapes, which can be used with some container lids. The entire design can be stacked on each other, which greatly occupies the area of the container and also greatly reduces the logistics cost.

3. All transparent container molds need to be polished well. In order to make the container look shiny, we usually use DIN1.2738, DIN1.2344, S136 as the mold cavity steel. If the container wall thickness is thick, 718 h steel can be used to reduce mold costs. We provide molds according to our customers' requirements.

MOLDEPLASTICO specializes in providing technical support for total molding line solutions. For more information, please feel free to contact us.
